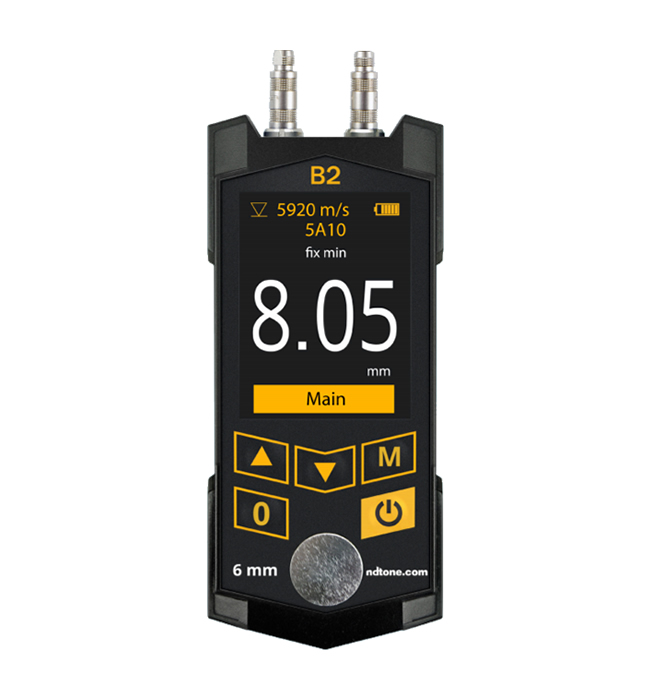

BASIC ULTRASONIC THICKNESS GAUGE- B2

The device is designed to measure the thickness of products from metallic and nonmetallic materials (sheets, tanks, pipes, pipelines, bridges, metal containers, transport and other structures, including highly corroded, with incrustation, etc.) during operation to determine their corrosion state on or after the manufacture of energy, tube, engineering, shipbuilding, transportation and other enterprises.

Category:
Description

Description

Purpose

The device is designed to measure the thickness of products from metallic and nonmetallic materials (sheets, tanks, pipes, pipelines, bridges, metal containers, transport and other structures, including highly corroded, with incrustation, etc.) during operation to determine their corrosion state on or after the manufacture of energy, tube, engineering, shipbuilding, transportation and other enterprises.

Features

  • high sensitivity, simplicity and ease of operation;
  •  automatic probe recognition;
  •  possibility of manual and automatic adjustment of sensitivity;
  •  backlight display;
  •  graphic LCD with an extended keypad provides a user-friendly interface with the device;
  •  possibility to store and view the results of measurements, transfer them to PC and a statistical treatment while using the attached software.

Basic technical characteristics

  •  measurement range for steel (T), mm: 0,5–200;
  •  sound velocity, m/s: 1000–9999;
  •  resolution (keypad selectable), mm: 0,1; 0,01;
  •  measurement accuracy, µm: ±(0,002T +0,03) in range of 0,5 to 10,0; ±(0,002T +0,05) in range of 10,0 to 200,0;
  •  possibility of gain adjustment;
  •  data memory: up to 2000 measurements;
  •  automatic probe recognition;
  •  transfer of data to PC;
  •  display: graphic LCD with backlight;
  •  power– battery 9V;
  •  operating temperature: from -10 °C to +50 °C (standard); from -20 °C to +50 °C (on request);
  •  dimensions, mm: 120 × 60 × 25;
  •  weight, g: 170 including batteries;
  •  connectors — Lemo 00.
Probes

Probes

Probes for thickness gauge B2

Dual element probe 5A10

Probe for thickness measurement of paint, powder, plastic, enamel and other non-ferrous dielectric coatings on conductive ferrous and non-ferrous materials.

Purpose

Measurement of thickness of walls of metal tanks, containers, pipes of big diameters.

Basic technical characteristics

  •  operation frequency, MHz, 5;
  •  thickness range (for steel), mm, from 1,0 to 200,0;
  •  dimensions of contact surface, mm, Ø10;
  •  overall dimensions, mm, Ø18 x 26;
  •  operating temperature range: from -10° to +60°C.

Particulars

Utilization of new synthetic materials provides low wear and good interfacing with rough surfaces.

Dual element polyimide probe 10A6

Purpose

Measurement of thickness of pipes, curved areas of containers with small radius.

Technical features

  •  operation frequency, MHz, 10;
  •  thickness range (for steel), mm, from 0,6 to 20;
  •  dimensions of contact surface, mm, Ø6;
  •  overall dimensions, mm, Ø14 x 26;
  •  operating temperature range: from -10° to +60°C.

Particulars

Utilization of new synthetic materials provides low wear and good interfacing with rough surfaces.

Dual element high-temperature probe 2.5A12

Purpose

Intended for testing the thickness of hot metal parts. Used with thickness meter B5.

Technical features

  •  operation frequency, MHz, 5;
  •  thickness range (for steel), mm, from 1,0 to 200,0;
  •  dimensions of contact surface, mm, Ø14;
  •  overall dimensions, mm, Ø27 x 50;
  •  operating temperature range: from -10° to +250°C.

Small-sized dual element probe 10A4

Purpose

Measurement of wall thickness of pipes, thin metal plates.

Technical features

  •  operation frequency, MHz, 10;
  •  thickness range (for steel), mm, from 0,5 to 10;
  •  dimensions of contact surface, mm, Ø4,5;
  •  overall dimensions, mm, Ø9 x 11;
  •  operating temperature range: from -10° to +60°C.

Particulars

Velká oblast měření, možnost měření v těžko dostupných místech (nosníky, potrubí s malým průměrem atd).
