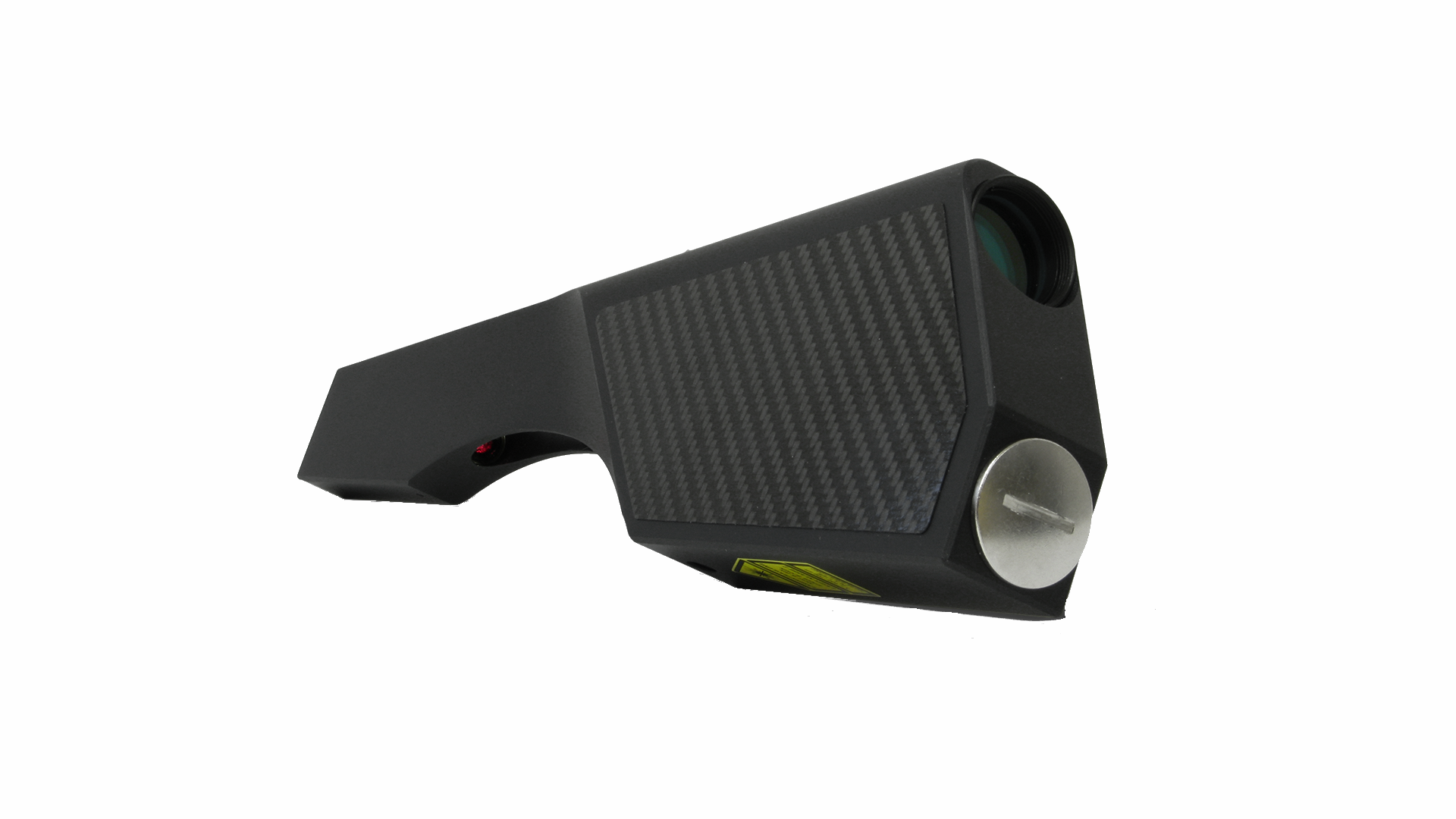

STT-shaft twist tester NO

STT R100 NO and STT R150 N

Simply make twist structures visible



The handy devices STT R100 NO and STT R150 N are particularly suitable for direct use in the production environment. By placing the device on the test object surface of the sealing seat, existing twist structures are made immediately visible to the eye. If the shaft to be tested is mounted on a prism table or between rotatable tips, the location dependency of the surface structure of the sealing seat can be checked quickly and easily by rotating the shaft with the test device in place.



Application background

Measurement method

The handy devices STT R100 NO and STT R150 N are particularly suitable for use directly in the production environment for shaft lead testing. By placing the device on the test piece surface of the sealing seat, existing twist structures are made immediately visible to the eye. If the shaft to be tested is mounted on a prism table or between rotatable tips, the location independence of the surface structure of the sealing seat can be checked quickly and easily by rotating the shaft with the test device in place.

The shaft lead tester STT R100 NO is designed for test shaft diameters from 5mm to 200mm. The STT R150 N hand-held tester enables the testing of shafts with a sealing seat diameter of up to 300 mm. Thanks to the compact, robust aluminum housing and the battery-operated laser, the tester is always ready to hand and ready for use even in rough production conditions. In addition, the test device STT R100 NO offers a connection option for a tripod (1 / 4´´ 20 UNC).



Specification

Technical Specification

  • Twist period measuring range: DP 20 – 200 μm
  • Twist depth: Dt> = 200 nm *
  • Axial back focus: 15 mm
  • Shaft diameter: 5 – 200 mm (STT R150 N up to 300 mm)
  • Illumination source: laser diode module laser class 2
  • Power supply: 6 V battery

* Specification for Rz = 2 μm (specification depends on roughness and twist period, permissible roughness. Ra 0.1 – 0.5 μm)

Optional accessories

Some technical useful accessories

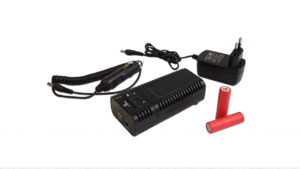

Battery charger for STT

Charger + 2x battery (similar to picture)

Voltage (batteries): 3.6 volts (branded lithium-ion batteries)

high quality universal 2-channel charger

LED status display

This article is suitable for the following models: STT NO, STT NK, STT NV
