FEATURES OF SPECTROMETER LIS-02
Carbon analysis: The spectrometer LIS-02 allows to measure carbon concentration in steels without using argon, directly in the air.
Speed: High speed analysis, result in 1 sec.
Accuracy: Provides unsurpassed resolution of 0.01 nm over the entire measurement range.

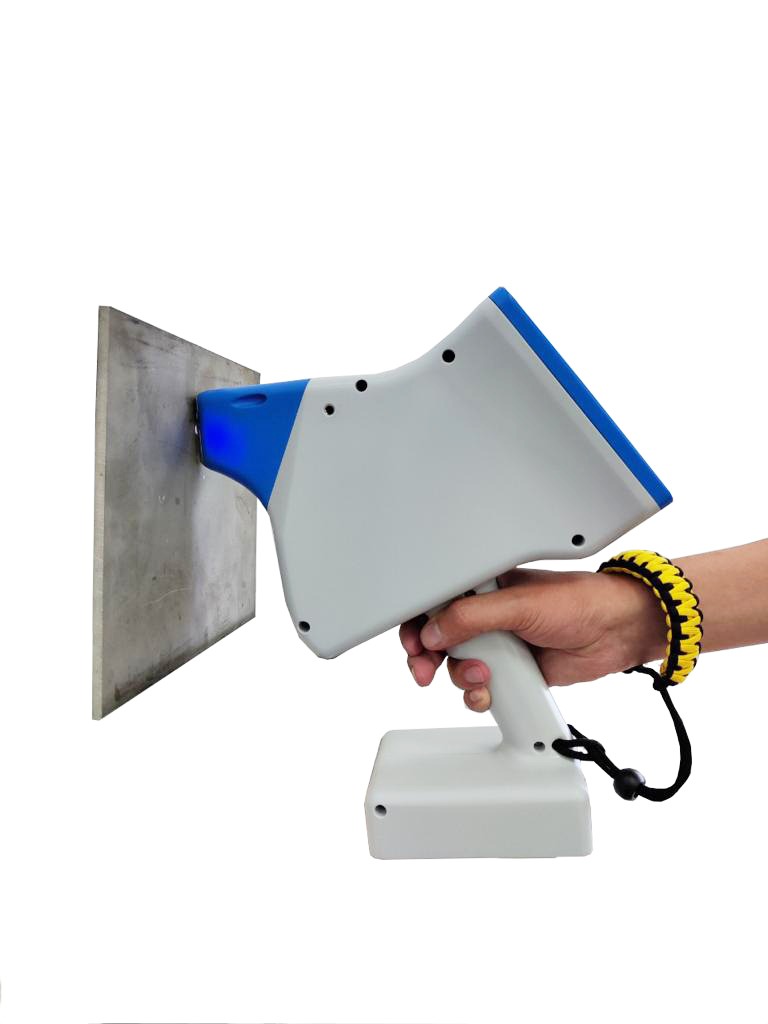

Portability: Small dimensions and weight comparable to a handheld power tool.
Reliable: LIBS Spectrometer has unlimited operating life, compared to X-ray fluorescence spectrometers (XRF).
Built-in grade library: Based on the results of the analysis, the steel or alloy grade is displayed on the screen.
CE Value: Measurement of carbon equivalent values
Camera: High resolution camera to capture the location of analysis.
Used for different bases and alloy impurities.
Fe | C, Si, Mn, Cr, Ni, V, Cu, Ti, Mo, Co, Al, Nb, W, Mg, Zn |
Al | Si, Zn, Mn, Mg, Fe, Cu, Ni, Be, Ti, Cr, V, Sb, Cd |
Cu | Si, Zn, Mn, Al, Be, Sb, Ni, Sn, Pb, Fe, Cr, |
Ni | Al, Si, Ti, V, Cr, Mn, Fe, Co, Cu, Nb, Mo, W, C |
Ti | Mo, V, Al, Fe, Cr, Zr, Mn, Sn, Ni, Nb |
Zn | Al, Cu, Fe, Sb, Sn, Mg, Pb |
TECHNICAL CHARACTERISTICS
Source of radiation | Pulsed DPSS Laser1064 nm |
Measurement point size | 50 microns |
Measurement duration | 1.0 sec |
Laser emitter safety class | 3b |
Working spectral range | 177-380 nm |
Display | 5″ color touch screen display |
Date Transfer | WIFI and Bluetooth |
Language | English, German and Russian |
Security | Password Protection |
Duration of autonomous work | More than 200 dimensions |
Power | Replaceable Li-ion battery |
Operating conditions : ambient air temperature | From -15 to +40 °С |
OTHER INCLUSIONS
- In Portable LIBS Spectrometer LIS -02 – Possibility to adjust the device operation parameters to the selected task
- Free built-in client software
- 24 months warranty
